Boleto Bancário

Start accepting payments using Boleto Bancário, a favorite voucher payment method in Brazil. You can process payments in US Dollars and Brazilian Real.

📘

If you want to use a gateway model for accepting Boleto Bancário payments, you will need to arrange an agreement with our provider, dLocal, and create merchant details (specifically, x_login and x_trans_key) and a secret key with them. Share these details with our customer support team and we'll get you up and running. If you have already been onboarded for one of our other dLocal payment methods, you can use the same credentials.

Process a Boleto Bancário payment

Boleto Bancário can be used by either redirecting the customer to a statically hosted ticket (redirect integration method) or by rendering the complete ticket within your own checkout flow (direct integration method).

Payments follow a two-step process:

1. Request payment
2. Redirect the customer or render the ticket

Step 1: Request payment

The request

Use the details below to set up your request.

Endpoints

Live

POSThttps://api.checkout.com/payments

Sandbox

POSThttps://api.sandbox.checkout.com/payments

Header parameters

Body parameters

📘

The table below describes the minimum recommended fields. You can find the full list, as well as complete request and response examples, in our API reference.

Request examples

{
  "source": {
    "type": "boleto",
    "integration_type": "redirect",
    "country": "BR",
    "payer": {
      "name": "John Doe",
      "email": "[email protected]",
      "document": "53033315550"
    },
    "description": "boleto payment"
  },
  "amount": 100,
  "currency": "BRL"
}

{
  "source": {
    "type": "boleto",
    "integration_type": "direct",
    "country": "BR",
    "payer": {
      "name": "John Doe",
      "email": "[email protected]",
      "document": "53033315550"
    },
    "description": "boleto payment"
  },
  "amount": 100,
  "currency": "BRL"
}

The response

Whether you used the direct or redirect method, you should get a 202 response with the status field set to Pending. This means your request has been accepted.

Response examples

{
  "id": "pay_hcklpcd45ymepcr7thciirbdaa",
  "status": "Pending",
  "customer": {
    "id": "cus_kh6eqv276rou7ae5s3uwj4emnq"
  },
  "_links": {
    "self": {
      "href": "https://api.sandbox.checkout.com/payments/pay_hcklpcd45ymepcr7thciirbdaa"
    },
    "redirect": {
      "href": "https://sandbox.dlocal.com/collect/pay/pay/M-8aaf7e50-682f-11ea-ab15-cd9dd592717d?xtid=CATH-ST-1584436398-2076616064"
    }
  }
}

{
  "id": "pay_gxw65fs6rijepgn4rb5tqqvp5u",
  "status": "Pending",
  "customer": {
    "id": "cus_6unw4ulqvrlenduk4xiurlbiyq"
  },
  "_links": {
    "self": {
      "href": "https://api.sandbox.checkout.com/payments/pay_gxw65fs6rijepgn4rb5tqqvp5u"
    }
  }
}

Step 2: Redirect the customer or render the ticket

To complete the payment, you need to provide the customer with a Boleto Bancário ticket by following one of two flows:

• If you used the redirect method, redirect the customer.
• If you used the direct method, render the ticket.

Redirect the customer

📘

When using the redirect integration method, make sure your customer is aware that they will be redirected to the ticket page when they click your "Pay now" button, and that they should print or save the ticket.

Using the redirection URL returned in the response above via _links.redirect, redirect your customer to the static, hosted Boleto Bancário ticket page. Once redirected, your customer should save or print the ticket.

A button on the page will allow them to return to your shop:

• If the ticket is still valid, they will be redirected to your success URL.
• If the ticket has expired, they will be redirected to your failure URL.

🚧

Your payment confirmation page should make it clear to the customer that their purchase has not yet been completed. Explain that it has been reserved and is pending payment before the order can be completed and the goods/services can be delivered.

Render the Boleto Bancário ticket

Redirect your customer to your payment confirmation page, where you should summarize their order and render the Boleto Bancário ticket so they can complete the payment.

🚧

Your payment confirmation page should make it clear to the customer that their purchase has not yet been completed. Explain that it has been reserved and is pending payment before the order can be completed and the goods/services can be delivered.

To get the components necessary to render the ticket, use the 'get payment details' endpoint below. This will return a ticket object which contains the components to display the ticket.

👍

Tips for displaying the ticket:

• Allow the customer to copy the ticket number. They need to enter this in their banking app/website to complete the payment.
• Include the barcode. Customers who pay at a physical store or use a barcode reader will need this.
• The barcode needs to be in the Interleaved 2 of 5 (ITF) format to be recognised by all Boleto Bancário barcode readers.
• Include the amount and currency on the ticket.
• Make sure the expiry date is clear and visible, and use the dd/mm/yyyy format.
• You can also include a link to the full ticket with the source.ticket.image_url. It's not necessary for payment, but some customers prefer to have it.

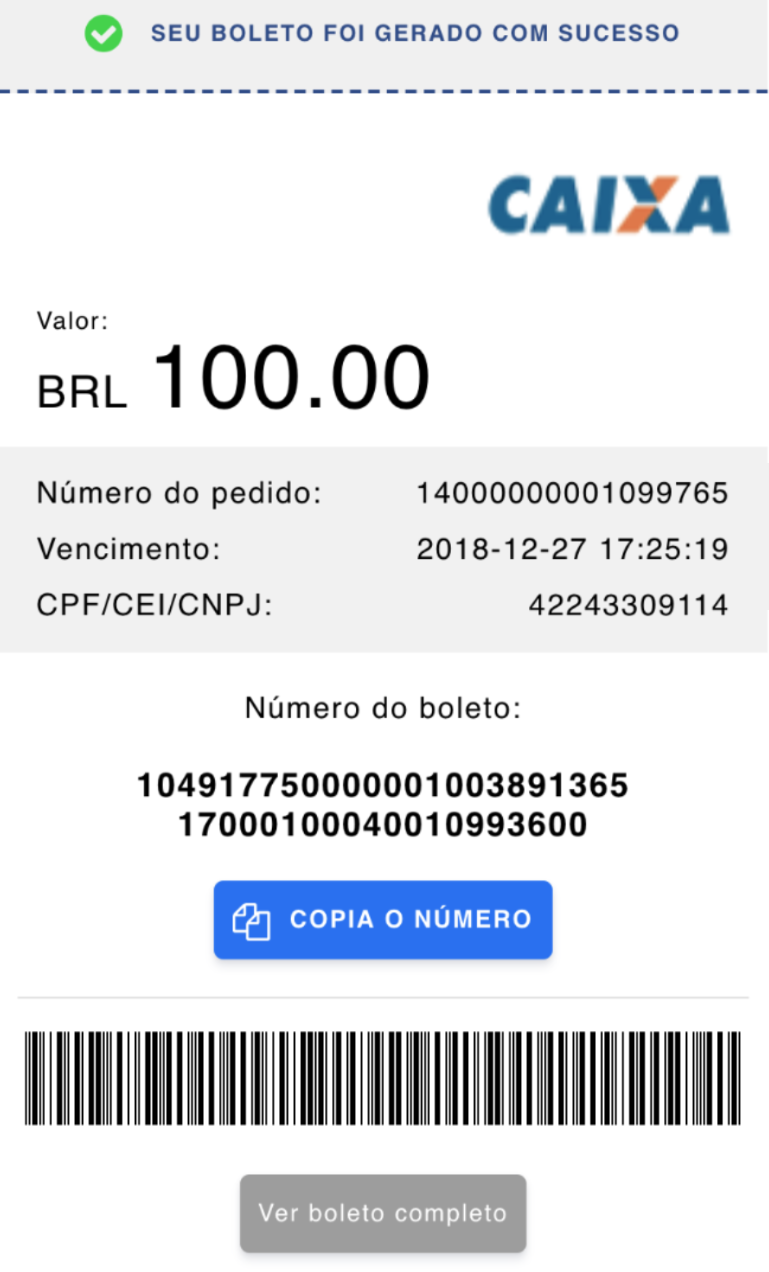

Here's an example:\

Get details about a payment

Using the following endpoint, pass the payment id (for example, pay_hcklpcd45ymepcr7thciirbdaa) from the payment response to get details about the payment.

The request

Use the details below to set up your request.

Endpoint live

GEThttps://api.checkout.com/payments/{payment_id}

Endpoint sandbox

GEThttps://api.sandbox.checkout.com/payments/{payment_id}

Header and path parameters

The response

The response will differ depending on which integration_type (redirect or direct) you used in the initial payment request.

Response examples

Redirect

{
  "id": "pay_hcklpcd45ymepcr7thciirbdaa",
  "requested_on": "2020-03-17T09:13:18Z",
  "source": {
    "type": "boleto",
    "dlocal_order_id": "430fa151c1034a8788950dcaf061c6b8",
    "dlocal_payment_id": "D-30150-39d14a21-f598-4163-b8d0-2befaf9acc29"
  },
  "amount": 100,
  "currency": "BRL",
  "payment_type": "Regular",
  "status": "Pending",
  "risk": {
    "flagged": false
  },
  "customer": {
    "id": "cus_kh6eqv276rou7ae5s3uwj4emnq"
  },
  "_links": {
    "redirect": {
      "href": "https://sandbox.dlocal.com/collect/pay/pay/M-8aaf7e50-682f-11ea-ab15-cd9dd592717d?xtid=CATH-ST-1584436398-2076616064"
    },
    "self": {
      "href": "https://api.sandbox.checkout.com/payments/pay_hcklpcd45ymepcr7thciirbdaa"
    }
  }
}

{
  "id": "pay_wflckd47jlwetk6zbm472m7vjm",
  "requested_on": "2020-04-27T12:59:26Z",
  "source": {
    "type": "boleto",
    "dlocal_order_id": "33f1ab1423b24d70baee5aea9207ee97",
    "dlocal_payment_id": "D-30150-e017ac0d-4f42-43d2-a12b-60f2322367bb",
    "integration_type": "redirect",
    "description": "simulate Boleto Bancário Demo Payment"
  },
  "amount": 100,
  "currency": "BRL",
  "payment_type": "Regular",
  "status": "Captured",
  "approved": true,
  "risk": {
    "flagged": false
  },
  "customer": {
    "id": "cus_cjdi2jubn2gevguvki3qsl5zby"
  },
  "_links": {
    "self": {
      "href": "https://api.sandbox.checkout.com/payments/pay_wflckd47jlwetk6zbm472m7vjm"
    },
    "actions": {
      "href": "https://api.sandbox.checkout.com/payments/pay_wflckd47jlwetk6zbm472m7vjm/actions"
    },
    "refund": {
      "href": "https://api.sandbox.checkout.com/payments/pay_wflckd47jlwetk6zbm472m7vjm/refunds"
    }
  }
}

Direct

{
  "id": "pay_gxw65fs6rijepgn4rb5tqqvp5u",
  "requested_on": "2020-03-17T09:14:17Z",
  "source": {
    "type": "boleto",
    "dlocal_order_id": "c0e6cc2bf24c43c79fbbee55df293f5c",
    "dlocal_payment_id": "D-30150-e59f330d-4b92-487c-a09a-3307be2184b7",
    "ticket": {
      "type": "custom",
      "number": "10499136581700010004400067492298882020000000100",
      "barcode": "10498820200000001009136517000100040006749229",
      "id": "14000000000674922",
      "expiration_date": "2020-03-23T02:59:00Z",
      "company_name": "dLocal",
      "provider_name": "caixa",
      "provider_logo_url": "https://static-sandbox.dlocal.com/images/providers/caixa.png",
      "ticket_url": "https://sandbox.dlocal.com/gmf/payments/M-ae4c2980-682f-11ea-ab15-cd9dd592717d"
    }
  },
  "amount": 100,
  "currency": "BRL",
  "payment_type": "Regular",
  "status": "Pending",
  "risk": {
    "flagged": false
  },
  "customer": {
    "id": "cus_6unw4ulqvrlenduk4xiurlbiyq"
  },
  "_links": {
    "self": {
      "href": "https://api.sandbox.checkout.com/payments/pay_gxw65fs6rijepgn4rb5tqqvp5u"
    }
  }
}

Refunds and chargebacks

Refund a payment

You can refund a Boleto Bancário payment using our refund API. Partial and multiple – as well as full – refunds are allowed.

The customer will get an email (the email address is taken from the source.payer.email property in the initial payment request) from dLocal asking for their banking details. Once the customer has provided their details, dLocal will transfer the money to the customer's bank account.

The payment status will update to refunded and you will receive a payment_refunded (or payment_refund_declined, if unsuccessful) webhook notification.

A refund processing fee may apply.

Chargebacks

There is no chargeback mechanism for Boleto Bancário.

Cancel a payment

You cannot cancel a Boleto Bancário payment, but it will expire after seven days (or more, if you have requested a longer period) if the customer fails to complete the transaction in this time. If the payment expires, we'll send you a payment_expired webhook.

Webhooks

📘

Learn more about webhooks and how to subscribe to them.

Testing

📘

To start testing, you'll need to:

• create a test account, and
• contact your customer success manager or integrations engineer to activate Boleto Bancário payments in the sandbox environment.

In your sandbox environment, you can test payment capture and expiration, as well as refund success and failure.

In order to test these actions, pass the string "simulate" as part of the source.description field in the initial payment request.

When you do, you will receive additional hypermedia links in the _links object in the payment response and in the 'get payment details' response.

Use the URLs contained in the simulator:payment-succeed, simulator:payment-expire, simulator:refund-succeed and simulator:refund-fail hypermedia objects to simulate the respective action/state change on the test payment.

🚧

You can only test the redirect payment flow in sandbox.
